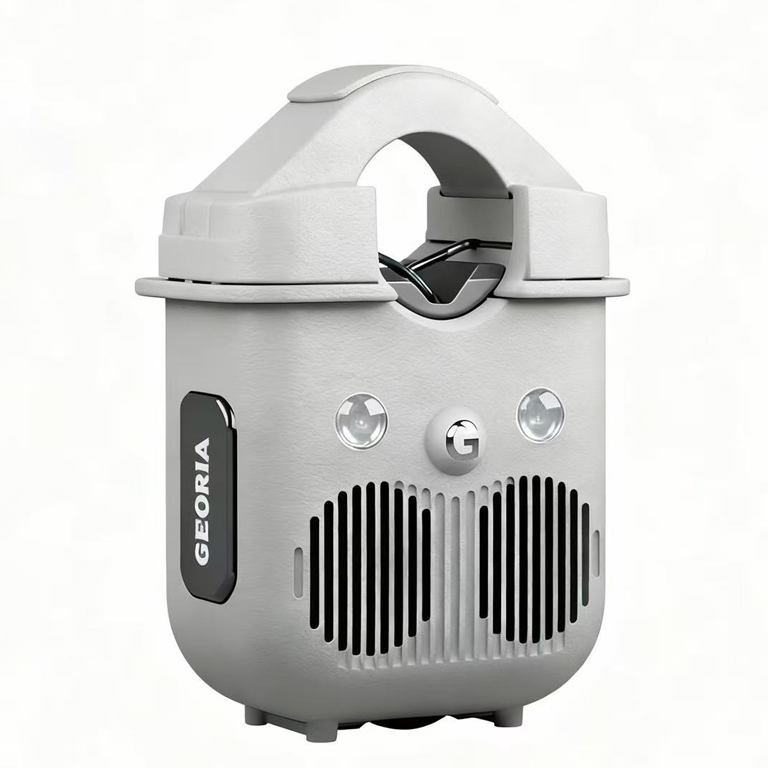

Intelligent Ultrasonic Bird Repeller-Distribution Line Type

With the development of the power grid, higher standards have been put forward for power supply reliability,but with the strengthening of environmental protection efforts, the number of various bird species is rapidly increasing every year.Birds and humans coexist and we have a responsibility to protect them,but birds often cause   significant economic losses and safety accidents in the power industry. The problem of bird nesting in the distribution network poses significant electrical safety hazards.

Therefore, our company designs a professional ultrasonic bird repellent for distribution network lines. It uses CT power supply+solar power supply system, intelligent energy storage control module, high precision bird recognition chip and other ideas to intelligently identify and repel birds.

Main features of intelligent bird repellent

Can generate high-frequency to low frequency automatic frequency conversion ultrasonic waves,stereoscopic scanning of bird repelling range , interferes with the bird's nervous and physiological systems.

The ultrasonic frequency range is 15—45kHz.

Ultrasonic schematic diagram

Bird nests are easily found on corner towers and towers with column mounted switches. Due to the special nature of towers with multiple corners and switches, bird nest components may become short circuited and trip when it rains or condenses at night. This bird repellent device is small in size, electrically installed, convenient and has a significant bird repellent effect.

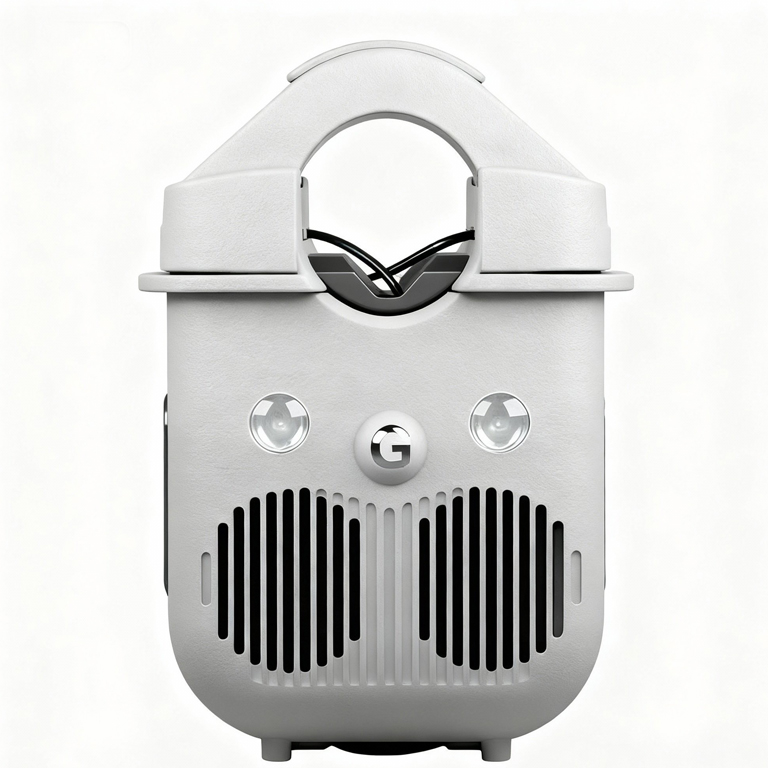

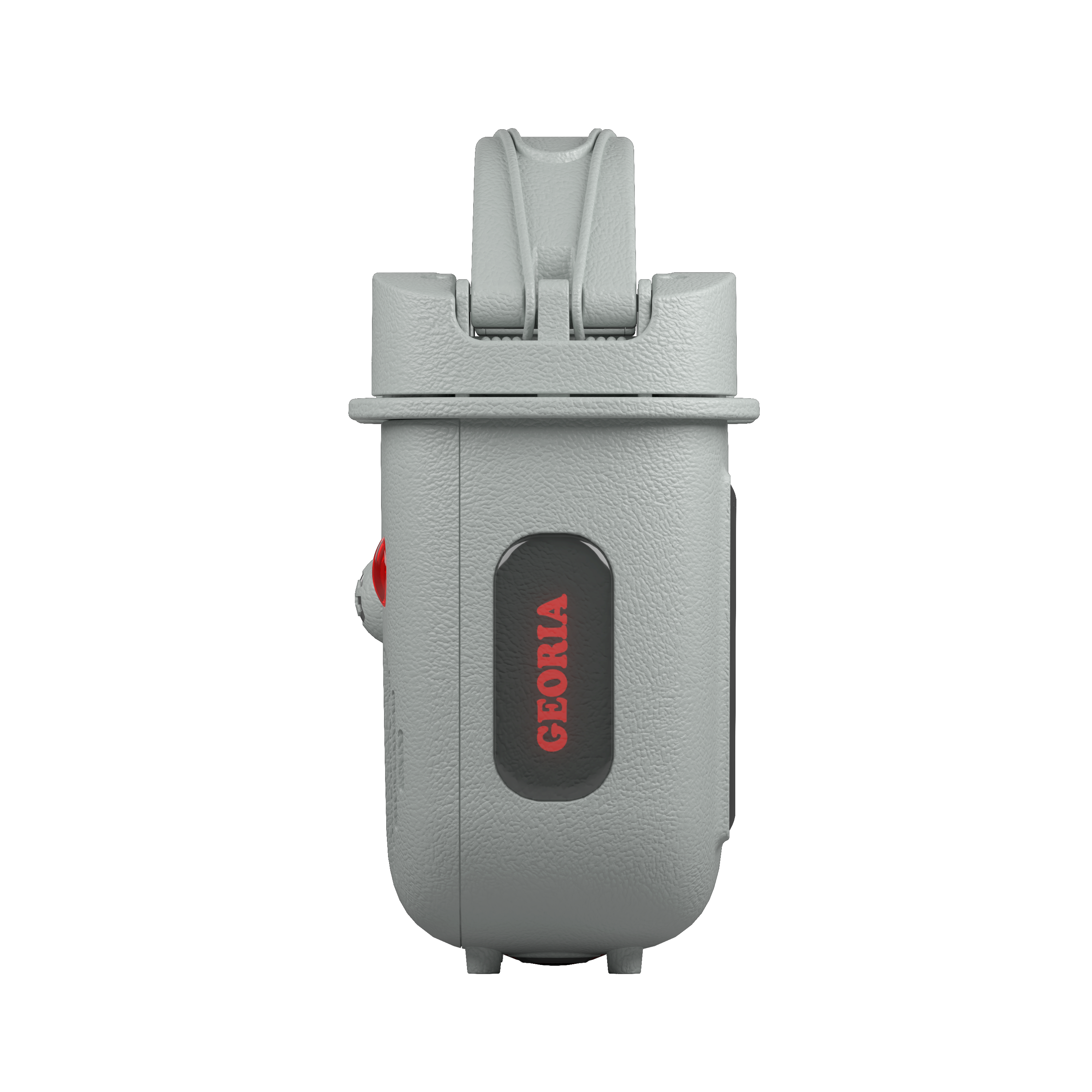

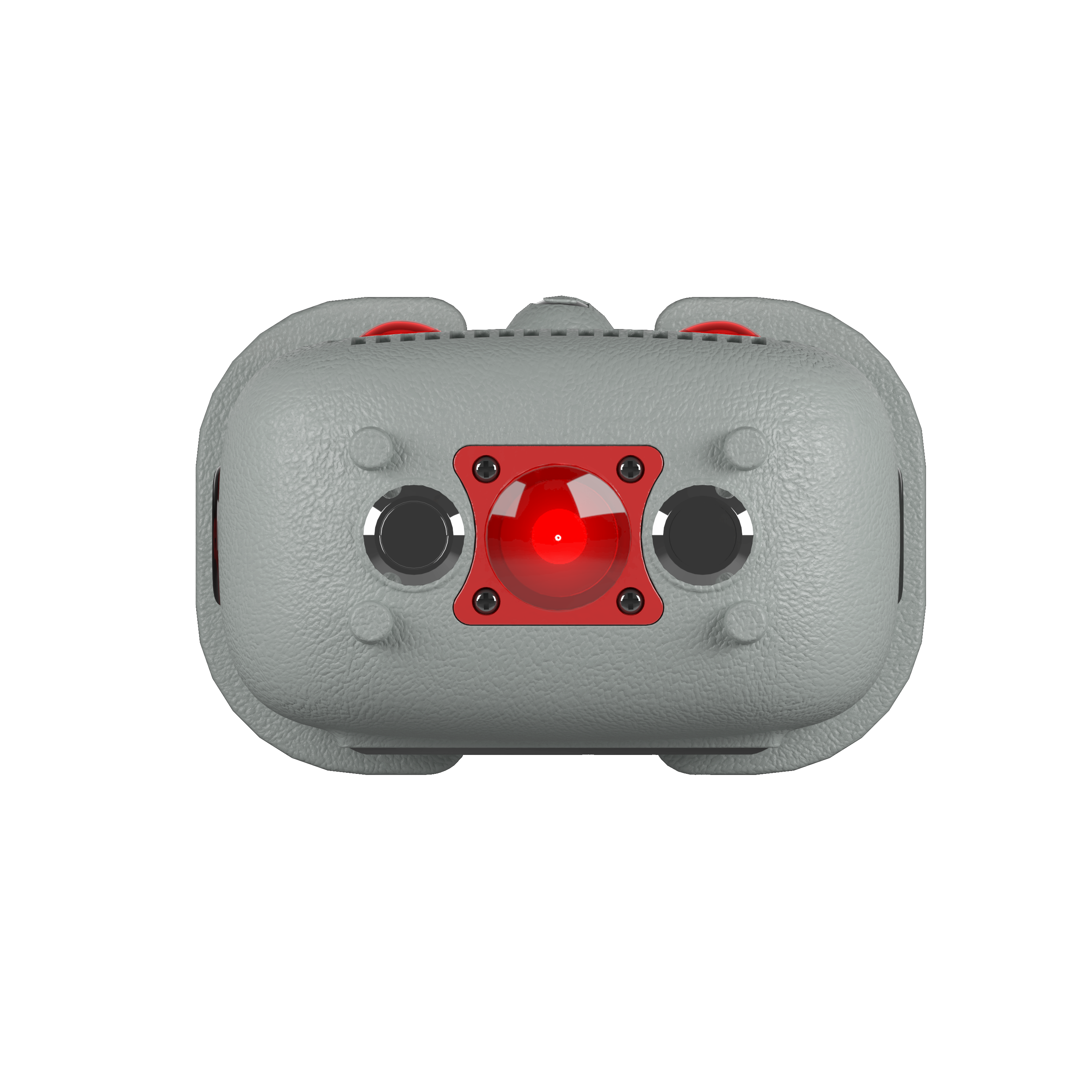

Spec of bird repellent for distribution line type

Characteristics and advantages of distribution line type

1.Can be installed with electricity, suitable installation location

Can be installed with electricity, using insulated rods to install on high-voltage lines. The installation position is 1.5 meters away from the cross arm, and the best bird repelling effect is when birds stay within the functional range.

2.Optimize design to avoid disturbing residents

This bird repellent device adopts physical bird repellent, with an ultrasonic frequency of over 20KHz, far higher than the audible frequency of the human ear. The small low-frequency ultrasonic waves and flashing lights adopt directional and distance based optimization ideas to greatly avoid disturbance to the public.

3.Diversified, three-dimensional, and intelligent bird repelling methods

The ultrasonic waves of this bird repellent device can generate low-frequency to high-frequency automatic frequency conversion, and the ultrasonic waves can scan the bird repellent range in three dimensions, interfering with the bird's nervous and physiological systems.

4.Ultra high frequency microwave identification system

The bird repellent is equipped with a microwave dynamic recognition system, which accurately identifies whether it is a bird through the movement and changes of small objects, and then screens and recognizes them through the system's AI algorithm. accurately identify and drive away, with an accuracy of over 98%.

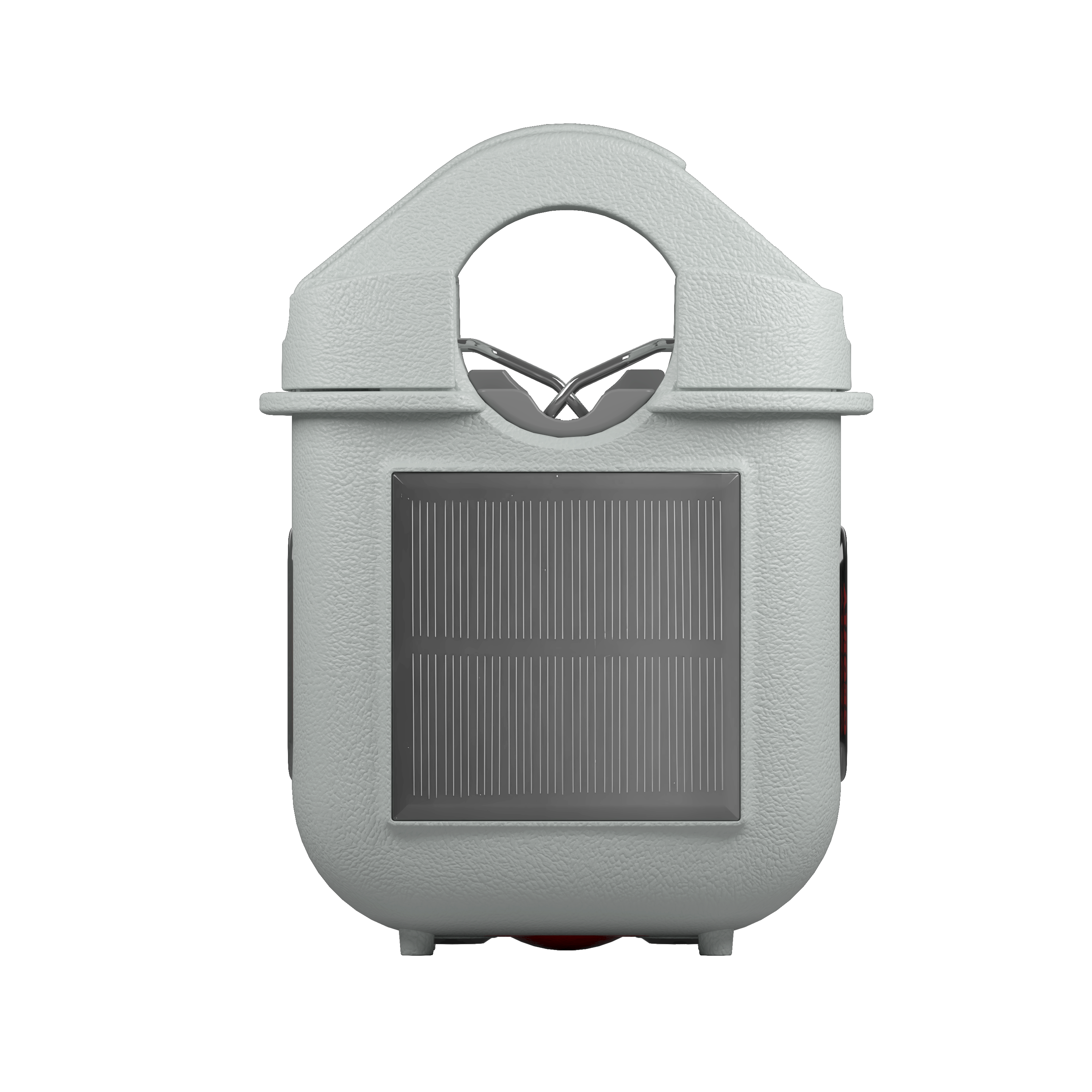

5.CT and solar power combination, battery control system, low-cost

The bird repellent is not always in working condition. Optimize the battery pack of the bird repellent to ensure that it works when there are birds and quickly charges the battery when there are no birds

Installation method

1. Before installation, inspect the product appearance for any damage

2. Turn on the power switch, and the strobe light starts flashing

3. After sensing that someone has started working, the installation personnel use specific insulated installation tools to install the bird repeller on the overhead line

4. Due to the need to climb the pole to a safe distance from the middle of the line for operation, bird repelling devices are generally installed at a distance of 1.5 meters from the crossarm

5. Align the ultrasonic horn towards the crossarm and utility pole.

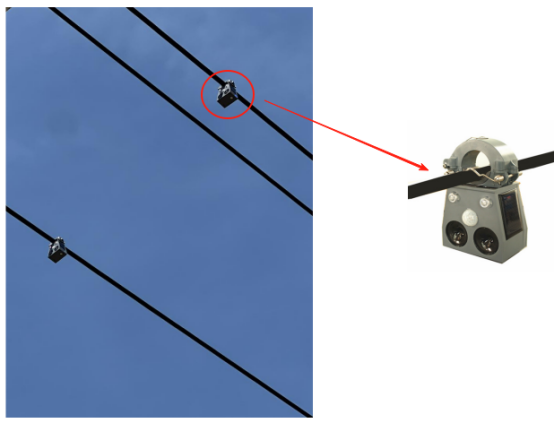

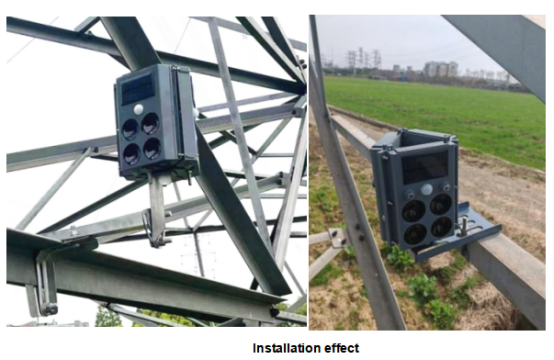

Installation effect

Spec of bird repellent for transmission line type

Characteristics and advantages of transmission bird repellent products

1.Suitable installation location, capable of live installation method

As it is not affected by high voltage, it can be directly installed on iron towers with bird nests. According to the common construction method of bird nests, a set of three-phase high voltage lines uses three sets of bird repellers, which are installed 2-3 meters away from the high voltage lines, making installation convenient, fast, and safe.

2.Reduce the cost of bird repellents and achieve high cost-effectiveness

Efficient optimization design is carried out for the bird repellent battery pack to ensure that it works when there are birds and charges when there are no birds, ensuring that the battery can be used for a long time and maximizing product usage.

3.Multiple ways to drive birds, birds have no adaptability

The ultrasonic wave and laser flashing light of this bird repellent device can generate low-frequency to high-frequency automatic frequency conversion of 15.5-45.5kHz. The ultrasonic wave scans the bird repellent range in three dimensions and interferes with the bird's nervous and physiological systems. Intelligent control of flashing lights for visual stimulation, causing physiological disorders to achieve bird repelling purposes.

4.Has long durability working characteristics

Installed on high-voltage transmission iron frames with minimal external interference, ensuring its stability and energy reliability. Reasonable installation can be carried out according to the installation position of different transmission lines to achieve the best bird repelling state.

Installation method

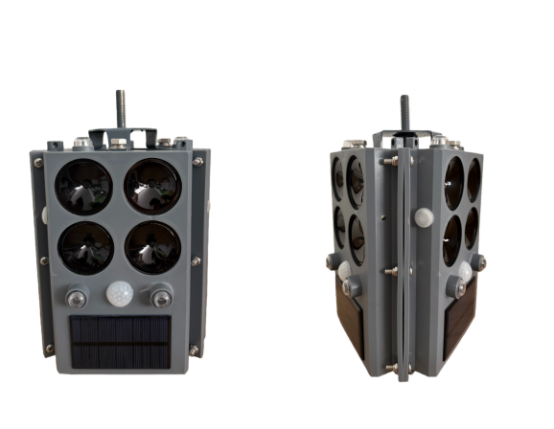

Transmission line type bird repeller

1. This product is suitable for use on high-voltage transmission lines

2. Check the appearance for damage before installation

3. Turn on the power switch and the flashing light will start flashing

4. The product senses that a person is starting to work, and the installation personnel carry a bird repellent to climb the tower to the top

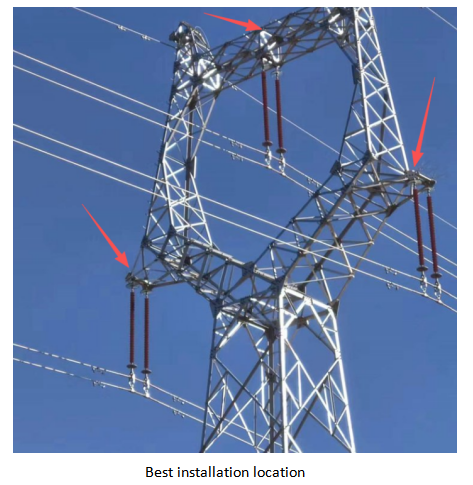

5. Install the product at the appropriate location based on the position of the high-voltage insulator

6. Align the ultrasonic horn direction with the high-voltage insulator

7. The bird repellent stops working after 56s of operation each time.
